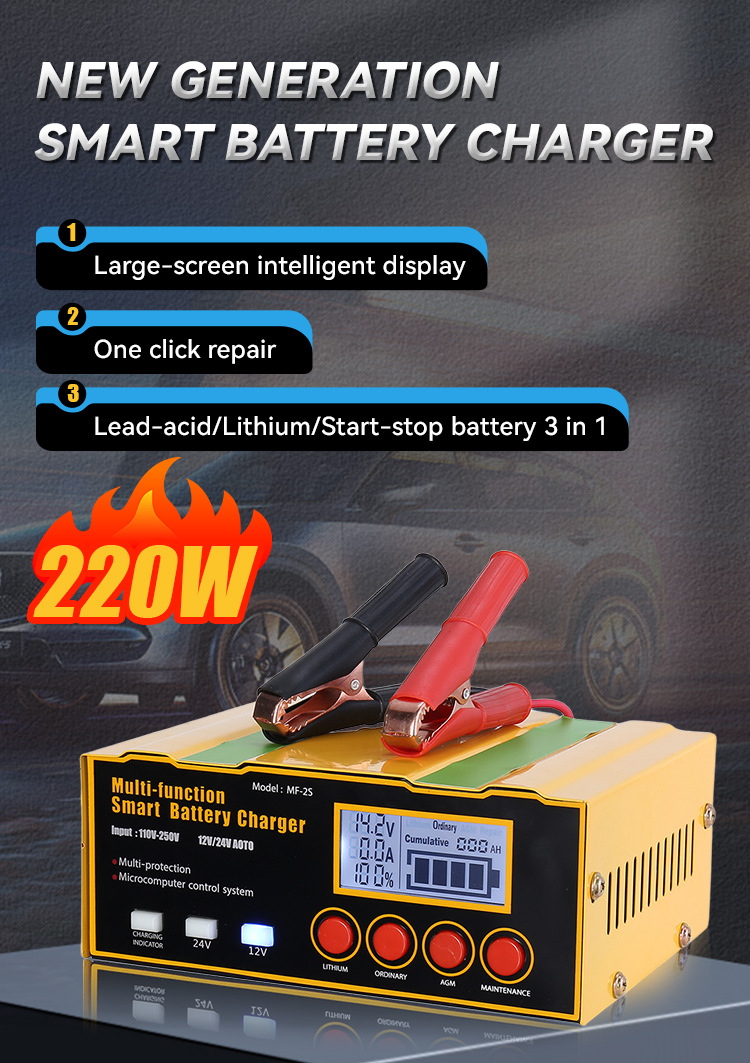

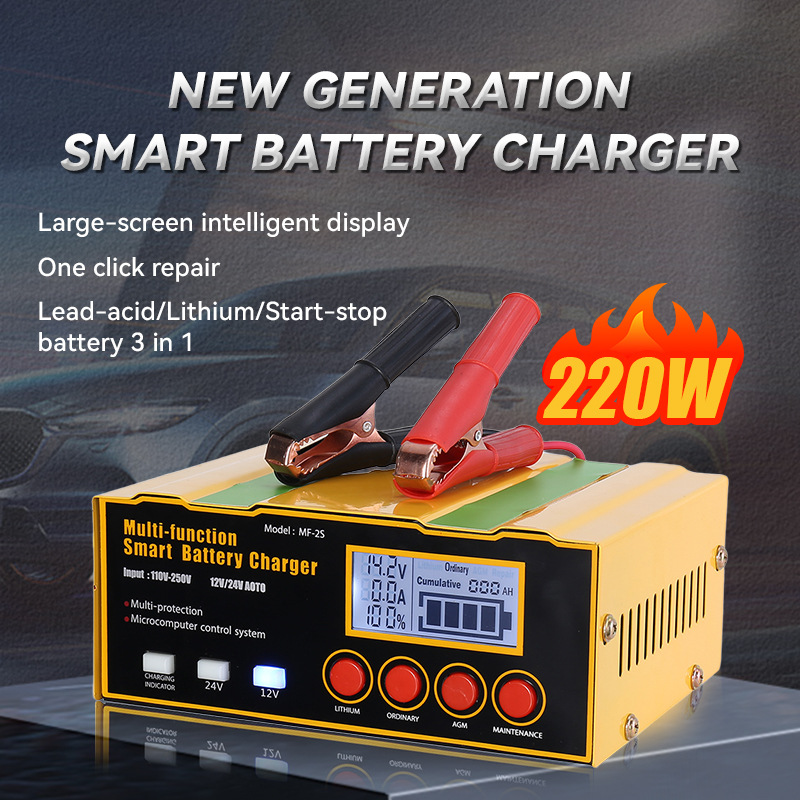

Car battery charger 12v24 volt high-power start-stop battery multifunctional automatic intelligent Universal
I have read the above disclaimer and your terms of service, and I agree to both.
Related Products
Product Details
国内使用，即是美规插头（扁插头）

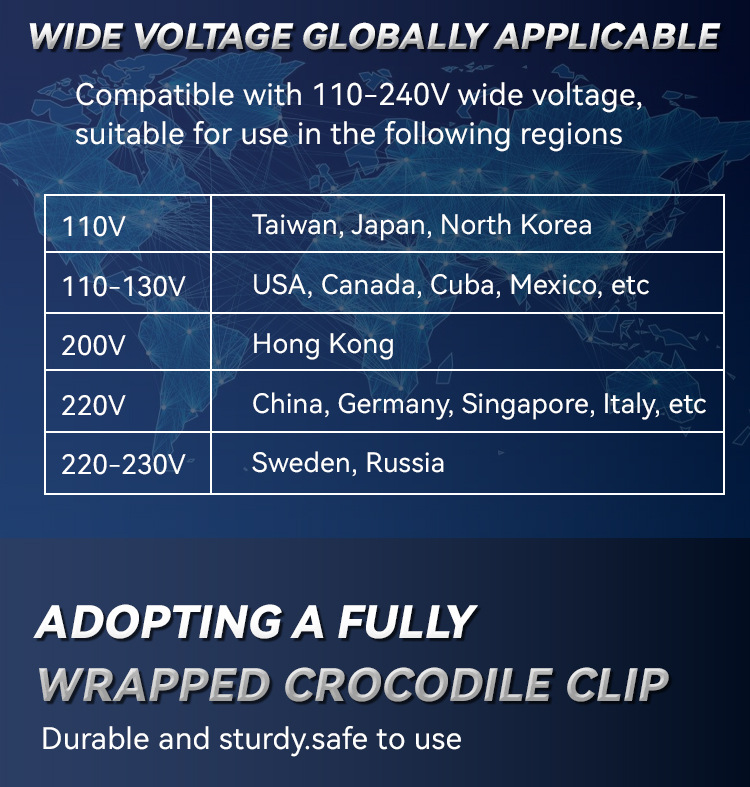

【110V-250V宽幅电压，全球通用】
此款为英文版面,图片为实拍图
包装信息
产品尺寸： 17.0X13.5X7CM
盒子: 23X 15.5X8.3CM
外箱：48X32.5X44CM
单个净重：0.7kg
单个毛重：0.8kg
箱入：20只
箱重：18KG
为更快速地了解本产品，中文详情请参照中文版，是同款产品
https://detail.1688.com/offer/608213926782.html?spm=a360q.8234005.0.0.43727ac4XNjtpb
| Productsize | 170*135*70(mm) | ||
| Netweight | 0.7kg | Grossweight | 0.8kg |
| Packingquantity | 20Pcs | Cartonsiza | 48X32.5X44CM |
| PackingWeight | 20KG | Plug | Optional |
| inputline | 120CM | outputline | 60CM |
Package List:
1 * Charger
1 * User Manual(English)

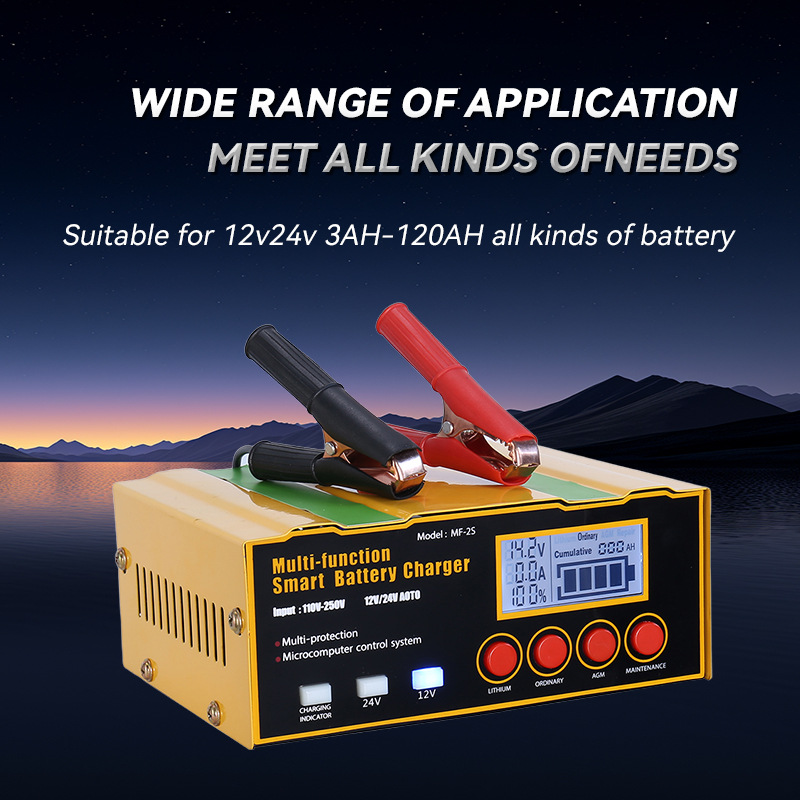

Application
Compatible all kinds of 12V /24V lead-acid battery, water battery, maintenance-free battery, dry battery charging. etc. (VELA batteru ,GEL battery,OPZN battery)
Compatible 12.6V lithium battery, AGM battery.

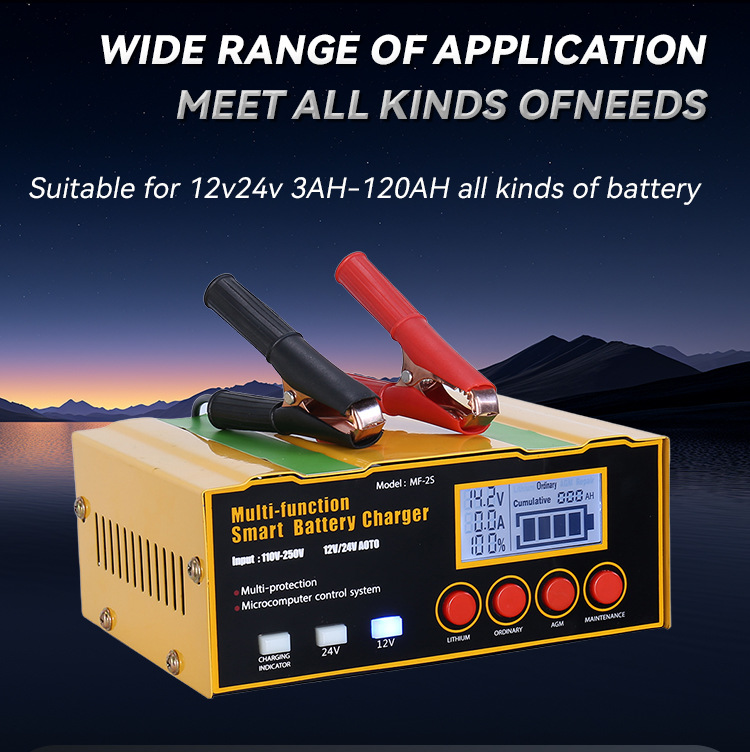

Application : car, scooter, motorcycle, SUV, small truck, tractor and any vehicle batteries.
Batteries of any size can be charged,The charging time depends on the true capacity of the battery.
Features

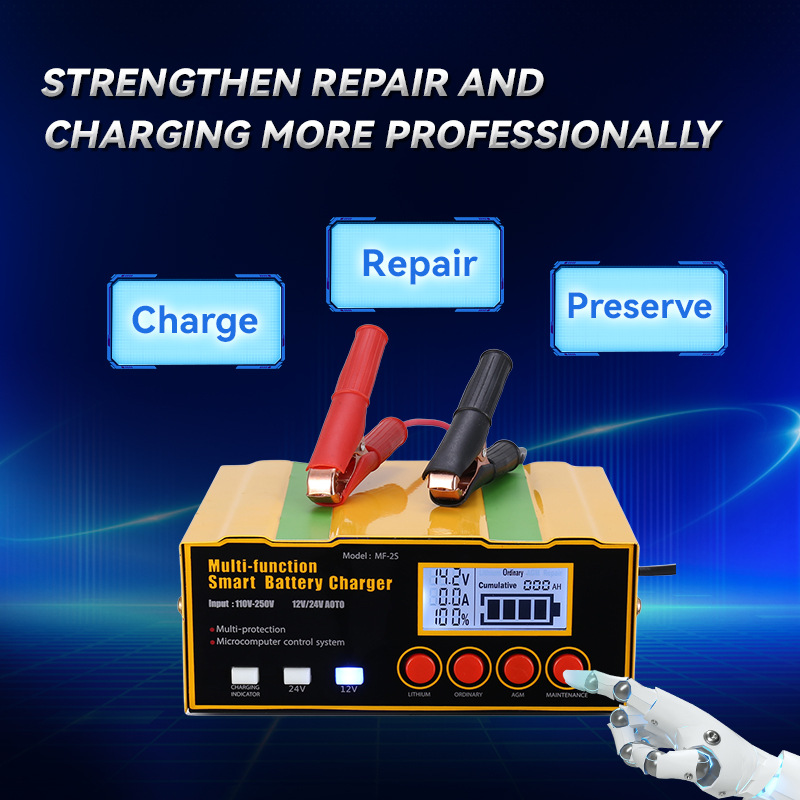

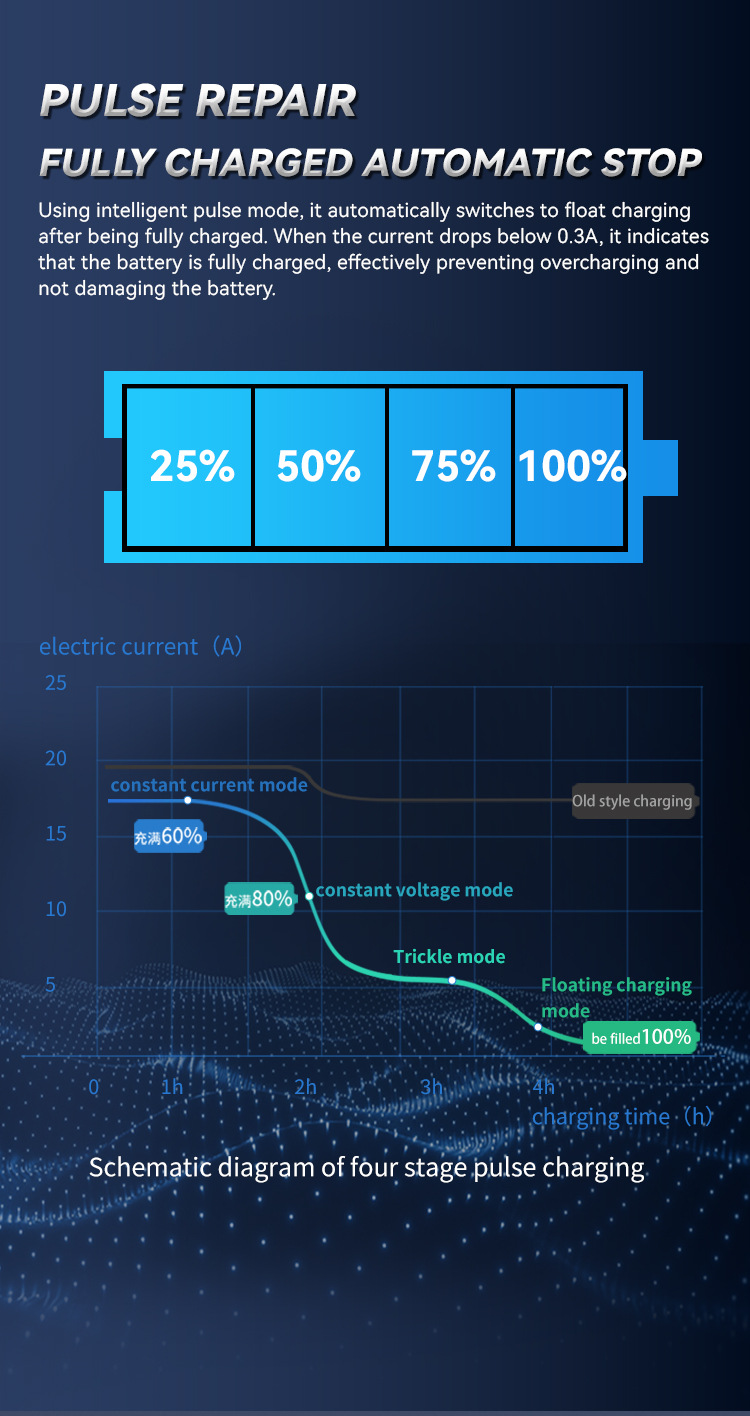

1. Easy and intelligent, One-button fully automatic, 4Stage Charge modes.
2. Safe for battery, safe for you, 6 protections.
3. Fast charge,up to 93% charging efficiency.

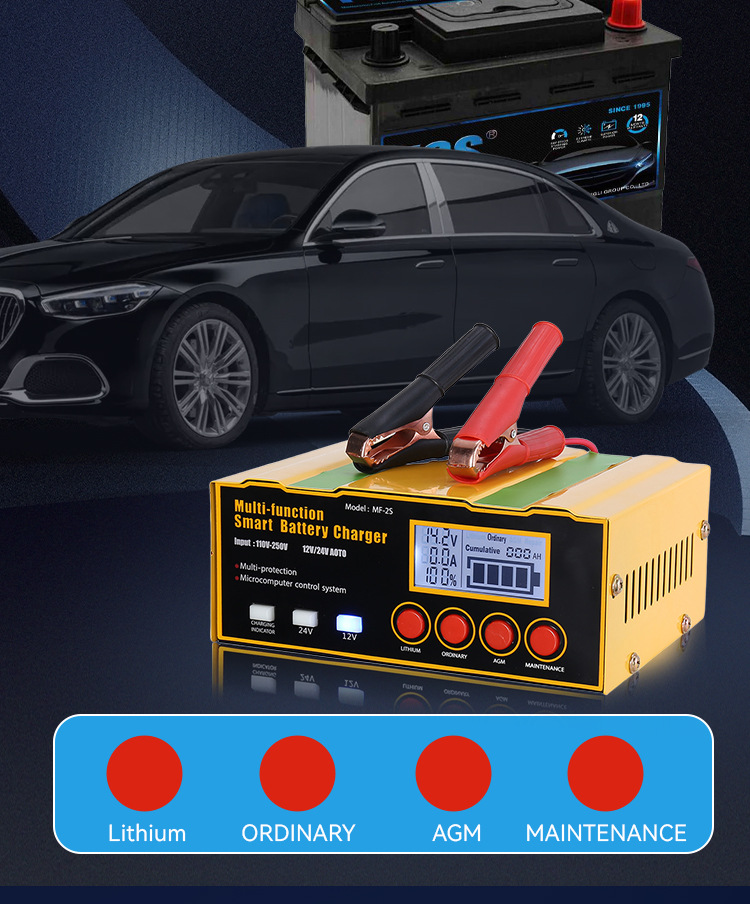

4. Wide applicability, Applicable for 12V or 24V battery, Compatible with 12.6V lithium battery and AGM battery charging.

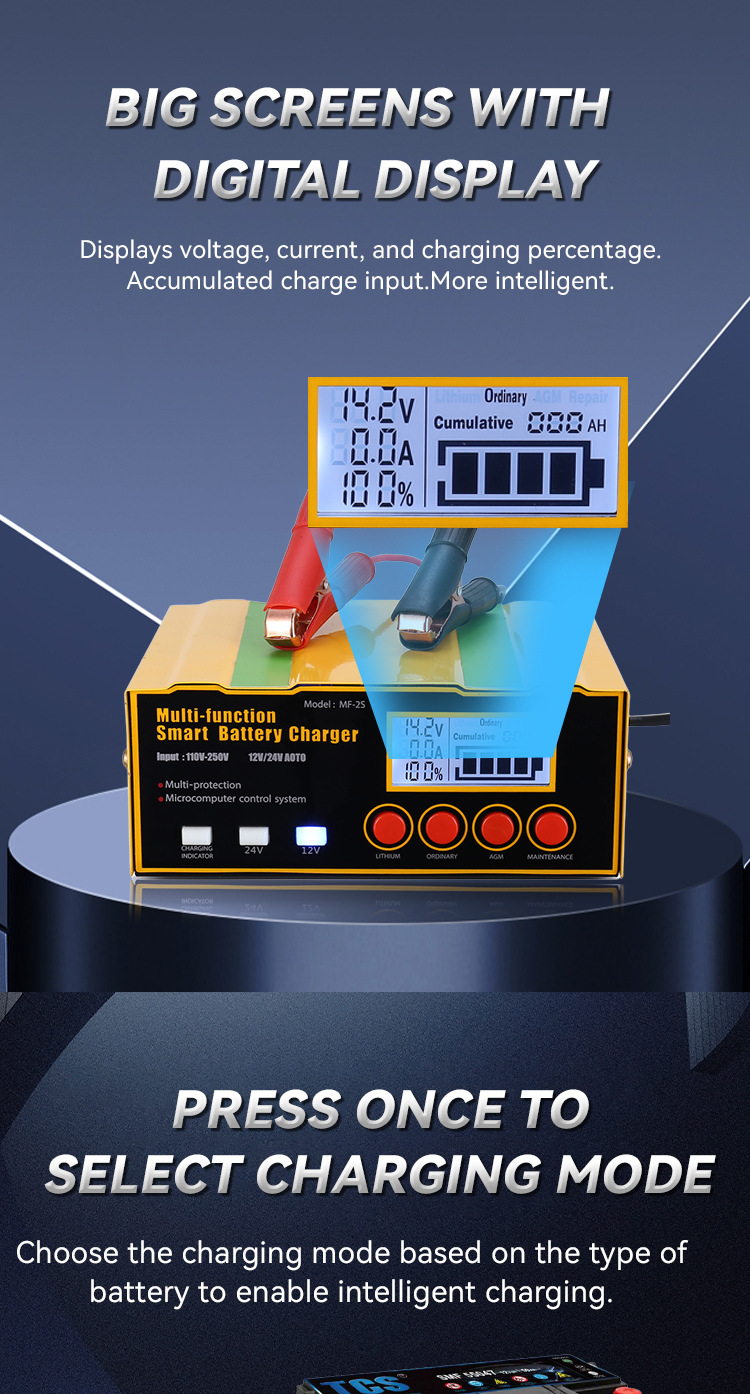

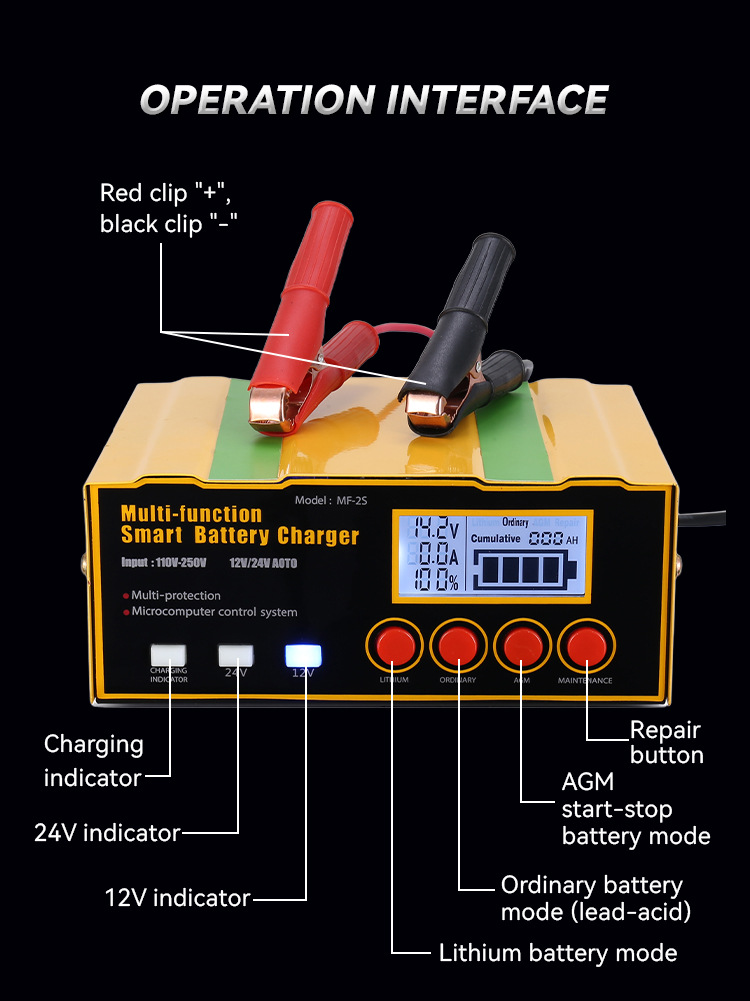

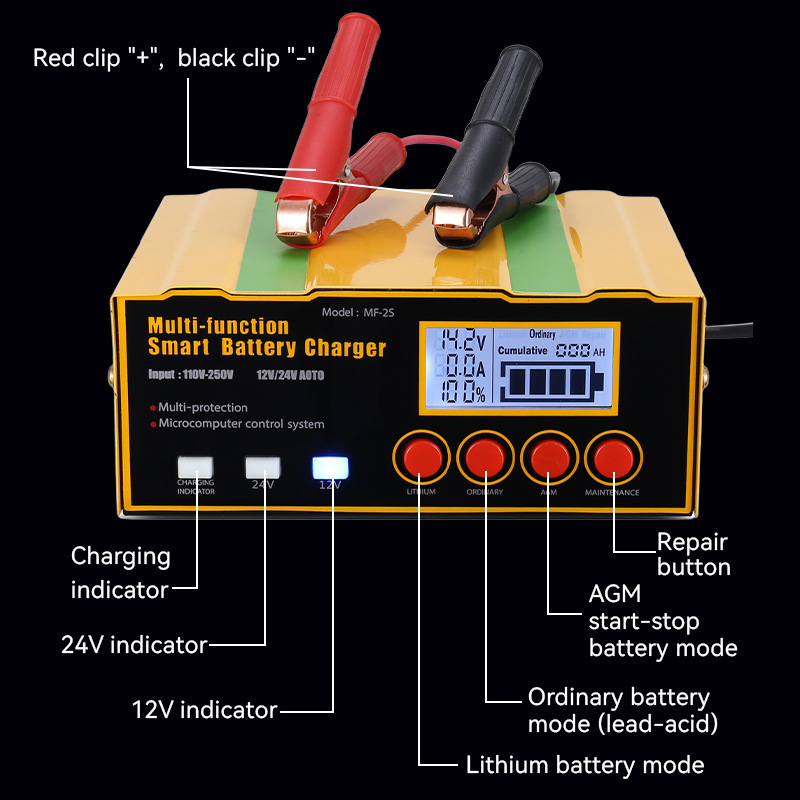

5. State visualization, digital display power, voltage, current , show charging status in stages.

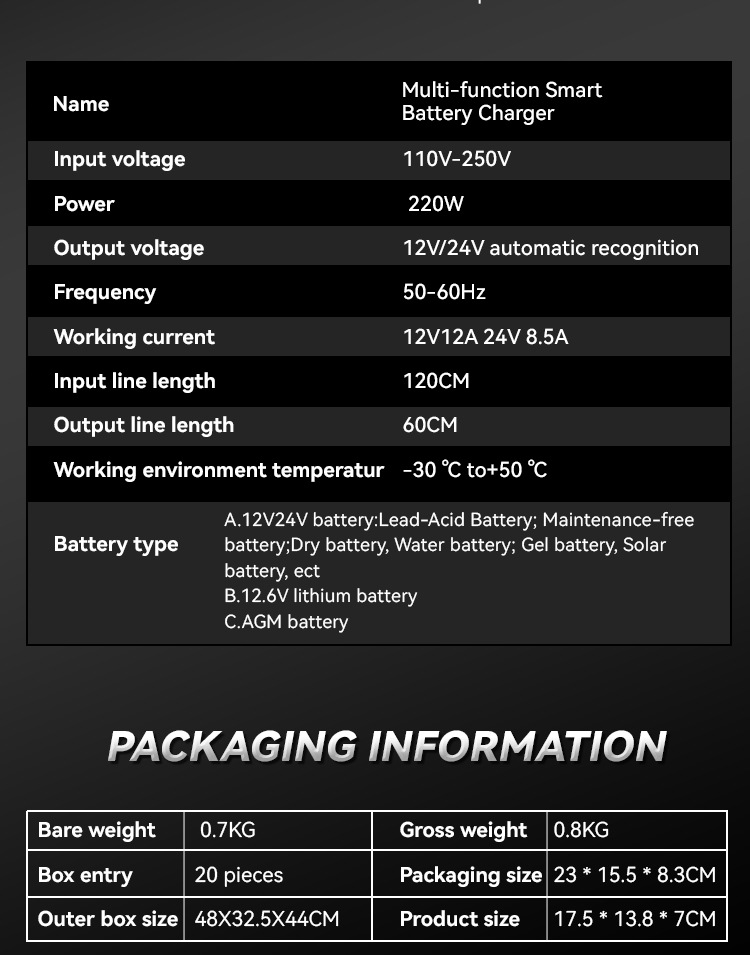

Specifications

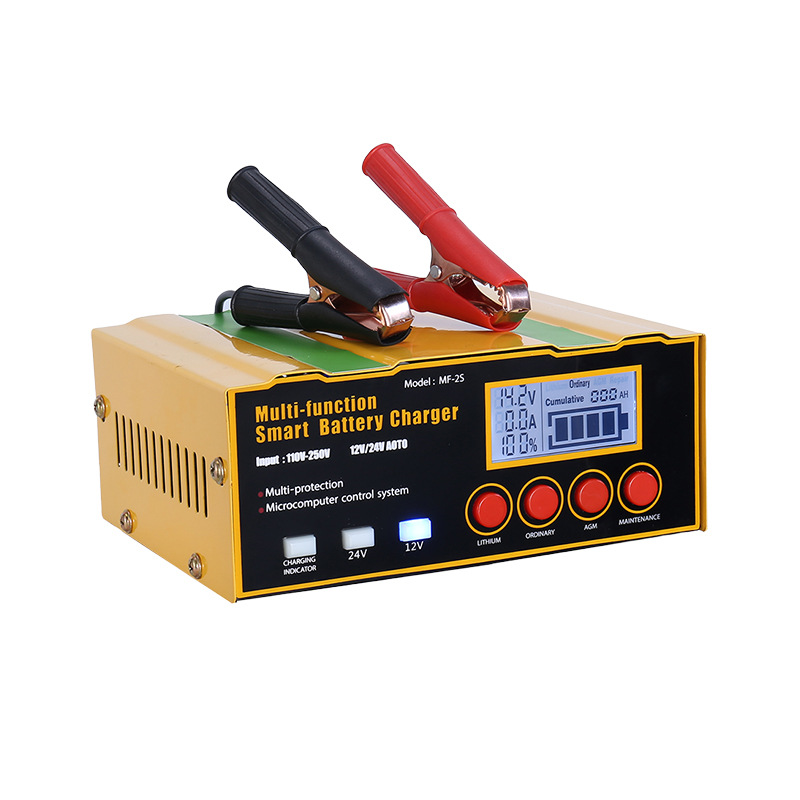

| Model | MF-2S | Brand | MONFARA |

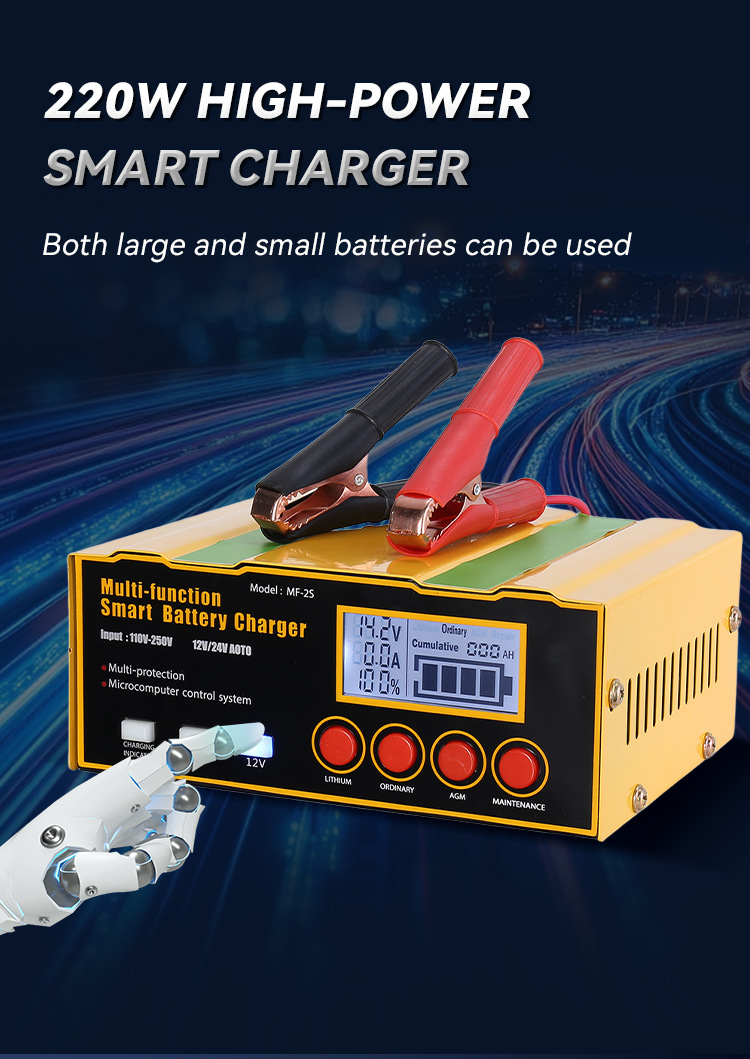

| Input voltage | 110V-250V | power | 220W |
| Output voltage | 12V24V | Frequency | 50-60HZ |
| Peak current | 12V/12A | Voltage Identification |
12V Peak (8-14.5V); 24V Peak (18-29V) |
| 24V/7.5A | |||

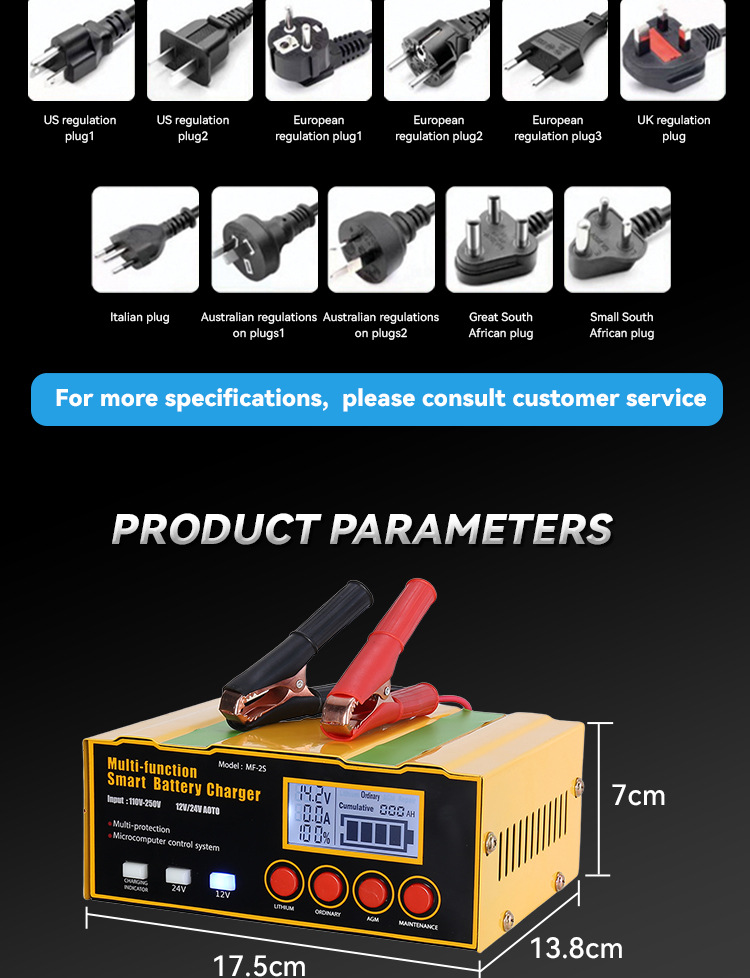

| Work Temperature | -30℃ to +50℃ | Product size | 17.5*13.5*7CM |
| Net weight | 0.7kg | Protection function | Multiple protection |
| Battery type | 1. 12V24V battery: Lead-Acid Battery; Maintenance-free battery; Dry battery, Water battery; Gel battery; Solar battery, ect. | ||
| 2. 12.6V Lithum battery, AGM battery | |||

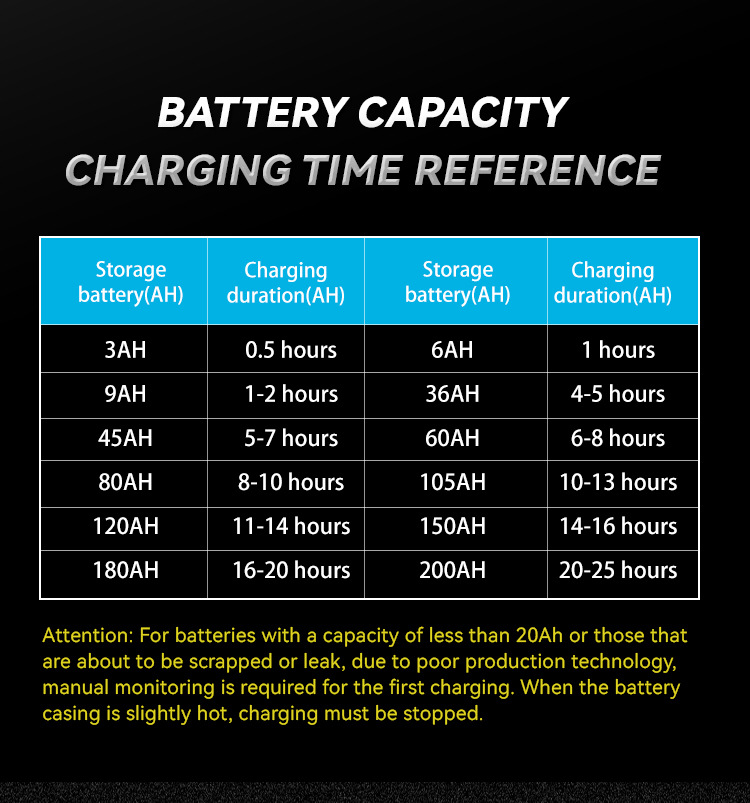

Fast Charge, charging time reference
| Battery(AH) | Charging time(H) | Battery(AH) | Charging time(H) |
| 3AH | 0.5 | 6AH | 1-2 |
| 9AH | 1-3 | 12AH | 3-5 |
| 20AH | 4-5 | 32AH | 5-7 |
| 36AH | 7-8 | 45AH | 7-10 |
| 55AH | 8-10 | 60AH | 9-14 |
| 80AH | 10-15 | 105AH | 15-22 |
| 120AH | 19-25 | 150AH | 20-28 |
Tip: The larger the battery capacity, the longer the charging time.

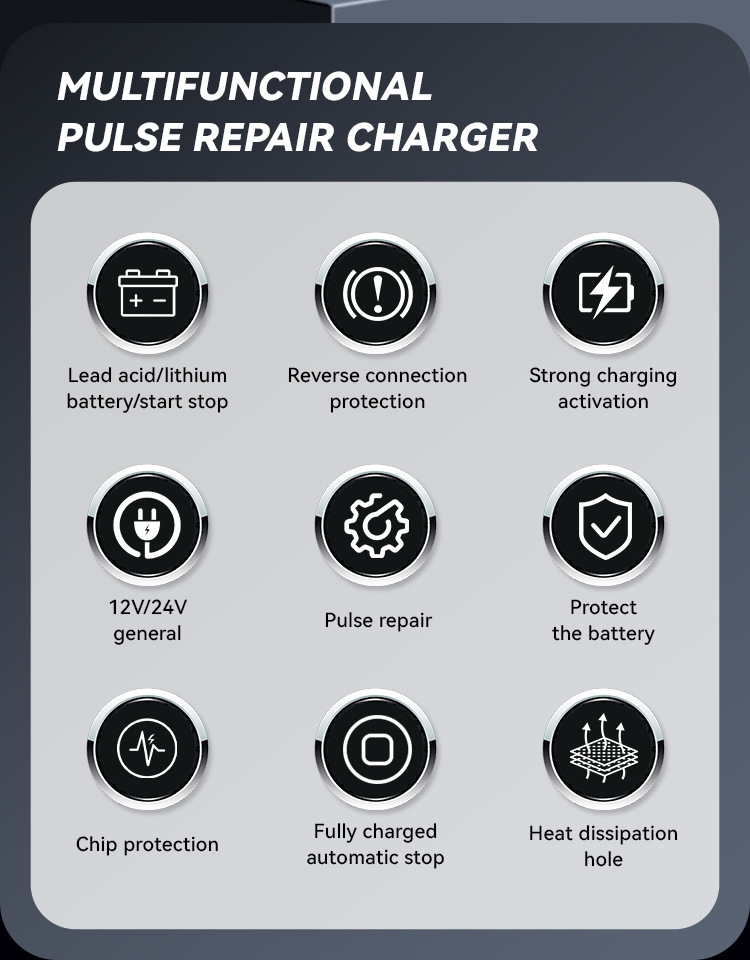

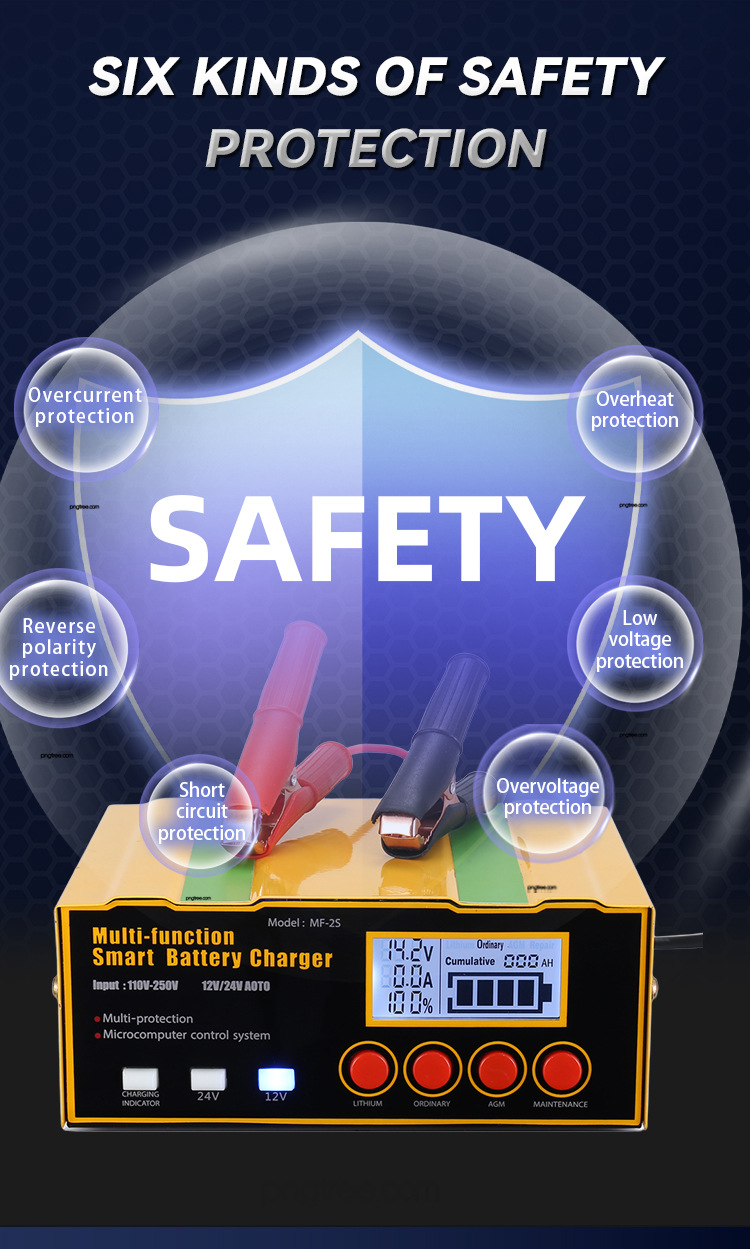

6 Protections, ensure safe charging
Short Circuit protection
Polarity error protection
Overheating protection
Over current protection
Low-voltage protection
Over voltage protection
Packaging information
| Productsize | 170*135*70(mm) | ||
| Netweight | 0.7kg | Grossweight | 0.8kg |
| Packingquantity | 20Pcs | Cartonsiza | 42x36.5x38CM |
| PackingWeight | 20KG | Plug | Optional |
| inputline | 120CM | outputline | 60CM |
Package List:
1 * Charger
1 * User Manual(English)
免责声明:以上数据均来自工厂实验室,实际根据客观环境变化或误差，有疑问请联系我们！
价格均不含税,如需开税票请联系客服.
公司名称：德庆县万乐智能电子科技有限公司
公司地址：广东省肇庆市德城镇工业集约基地左边一角
